Features
Small size and strong function

Constant temperature design with a free airflow

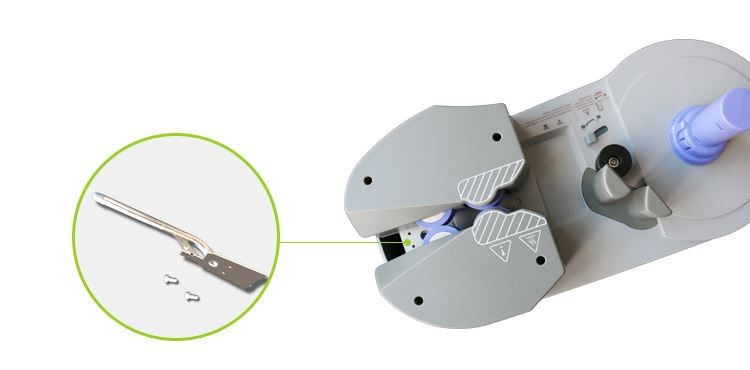

Durable and easy replaceable blade

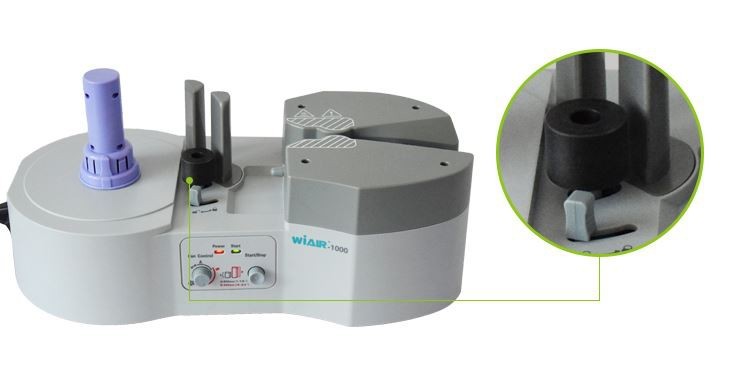

Special pressure roller for a film running prevention

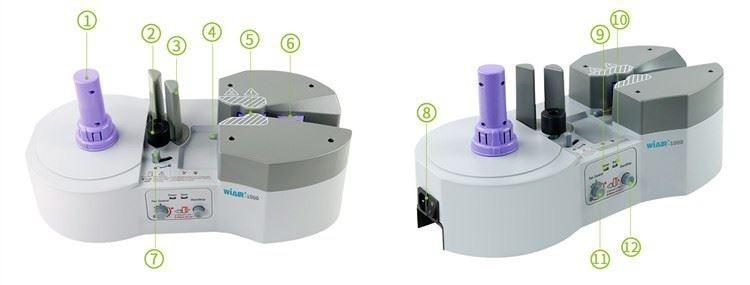

Product Structure

| 1.Feeding shaft | 7.Film roll pressure wheel toggle switch |
| 2.Film roll pressure wheel | 8.Power jack / switch |
| 3.Tension shaft | 9.Power indicator |
| 4.Duct | 10.Start / Pause indicator |
| 5.Hot wheels | 11.Air volume setting adjustment knob |
| 6.Pull wheel | 12.Start / tentative button |
Product Parameters
| Product name: | WIAIR1000 cushion air cushion machine |
| Bag sealing speed: | 3m / min(speed is not adjustable) |
| Temperature range: | 150-160 degrees Celsius (temperature is not adjustable) |

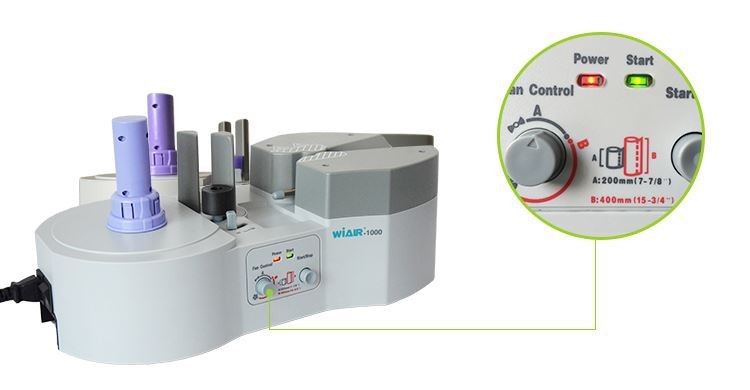

| Air volume control: | Adjustable (200mm and 400mm different use range) |

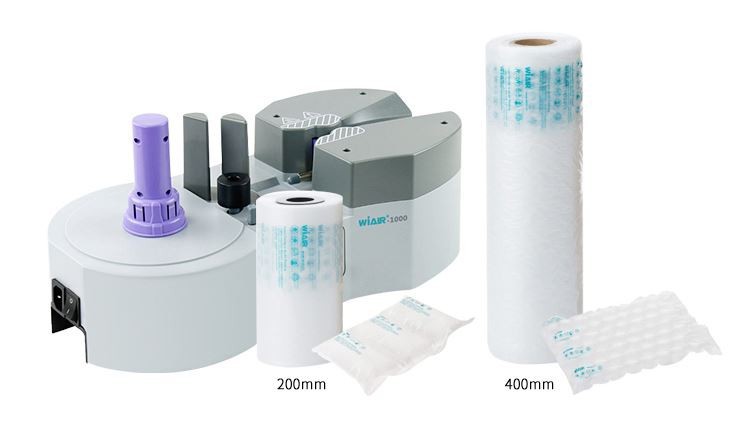

| Bag size: | 200x80mm, 200x100mm, 200x150mm, 400x250mm, 400x290mm |
| Working voltage: | 220-240V / 50Hz, 110-120V / 60Hz |
| Electrical power: | 750W (220-240V), 400W (110-120V) |
| Machine size: | 455x215x215mm |
| Net weight: | 3.6KG |
