HQ-236 A4 2-Roller Portable Laminating Machine
HQ series is a 2 rollers design laminator with cold & hot laminating function.These qulity machines are equipped with portable design and manual release function that provide users a friendly and convenient operation environment.

Send Inquiry

Product Details


Features

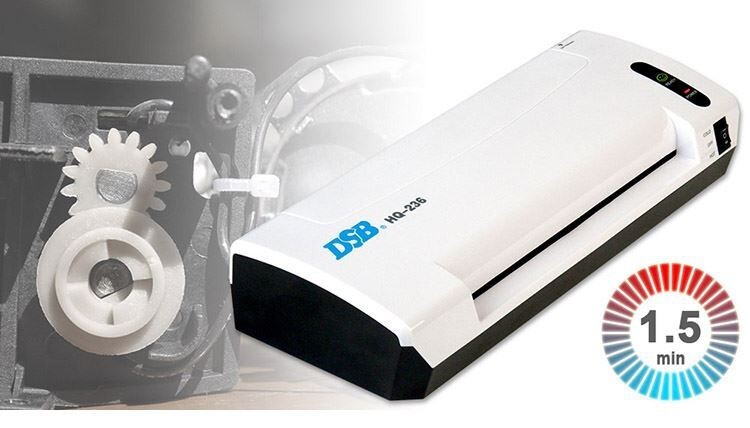

Take advanced NTC heating system,warming up time only need 2min, good temperature stability, heating uniformity, Present perfect no bubble super smooth powder coating effect.



Laminating speed up to 400mm/min, use out of the laminating, greatly improves the work efficiency.

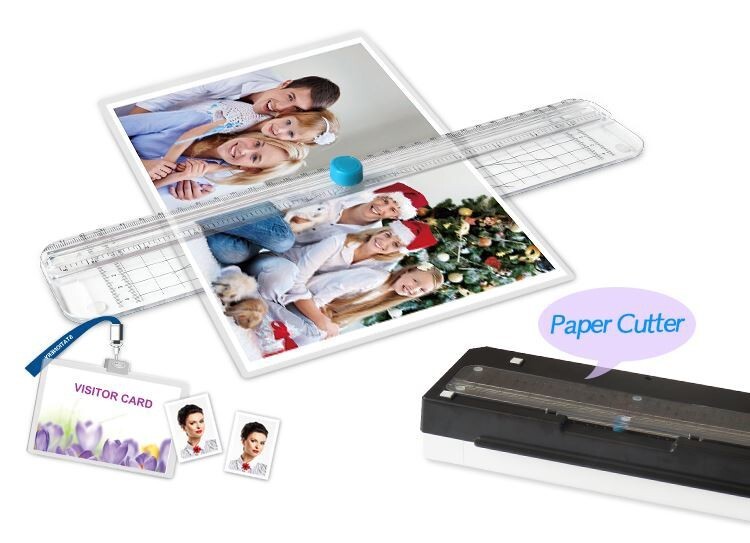

A small paper cutter is stored in the back groove.

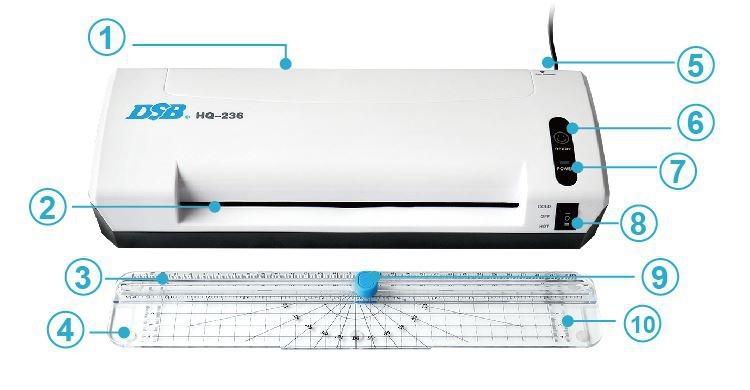

Product Structure


1.Pouch Output6.Pre-heating Indicator
2.Pouch Input7.Power Indicator
3.Sliding Rail8.Power Switch
4.Food Pad9.Cutter Head
5.Reverse10.Measurement Grid


Product Parameters

Model Number:HQ-236
Laminating type:Cold/Hot
Warm Up Time:1.5~2min
Laminating width:230mm
Laminating speed:400mm/min
Laminating Thickness:0.5mm
Laminating Range:70~125mic
Roller Q’ty:2
Machine size:356x151.6x66.5mm
Weight:1.2kg
